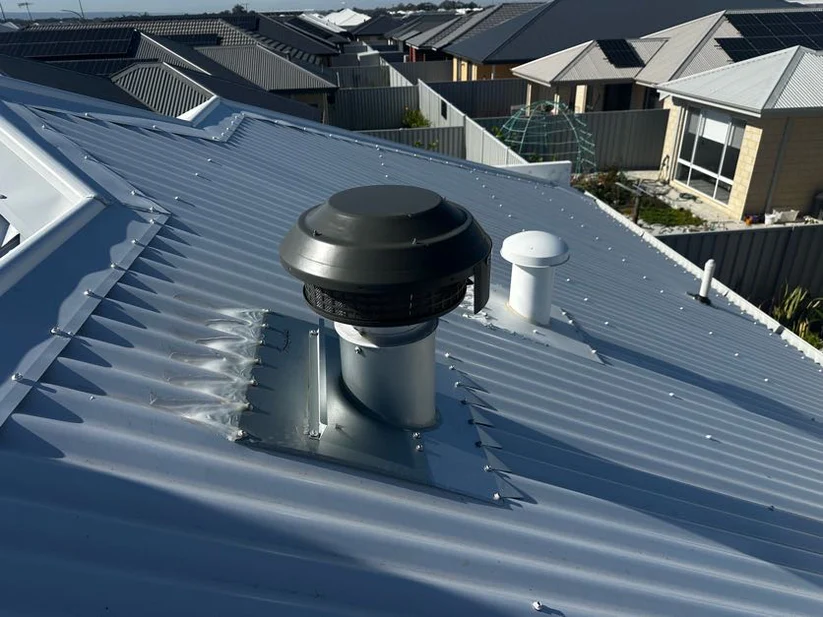

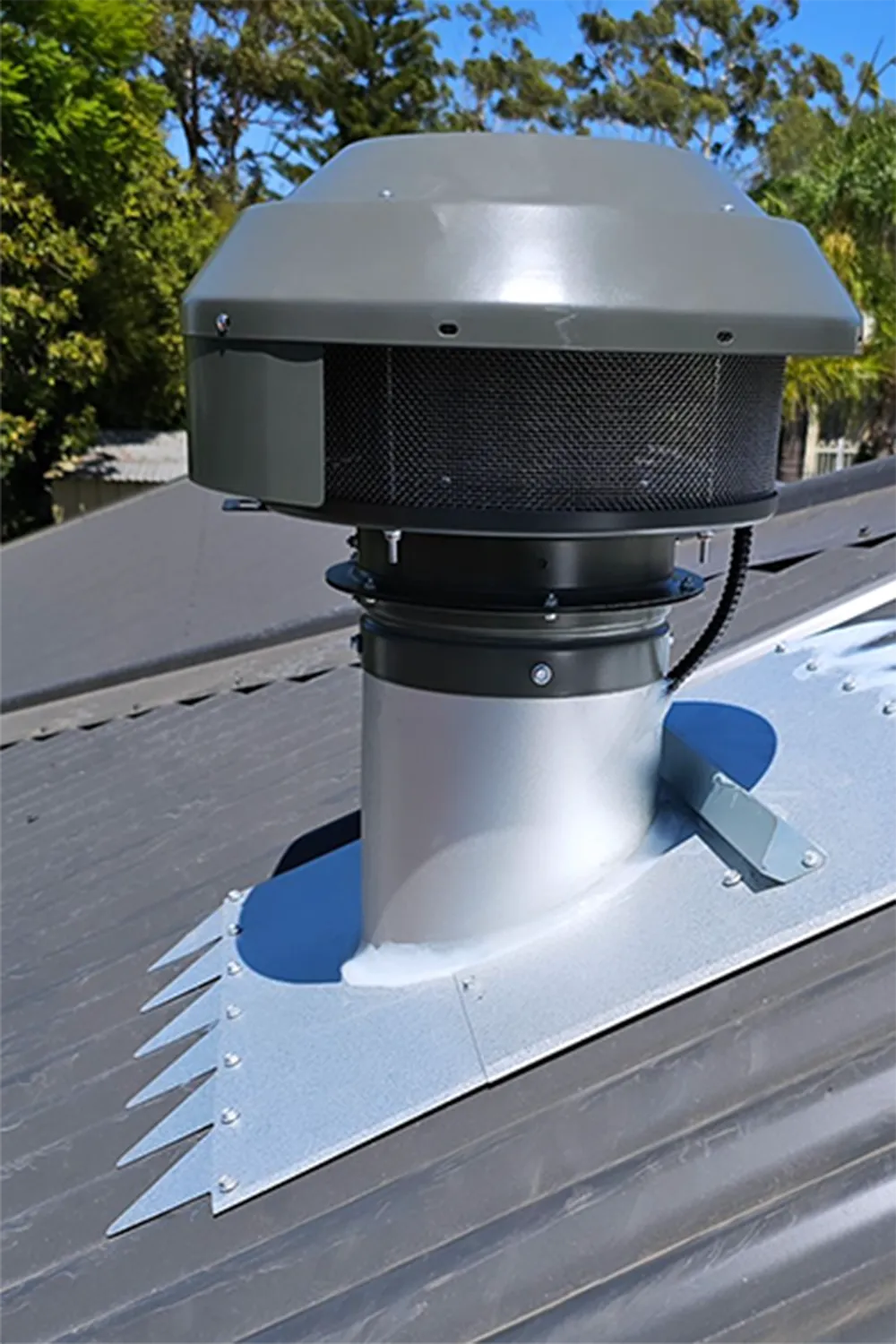

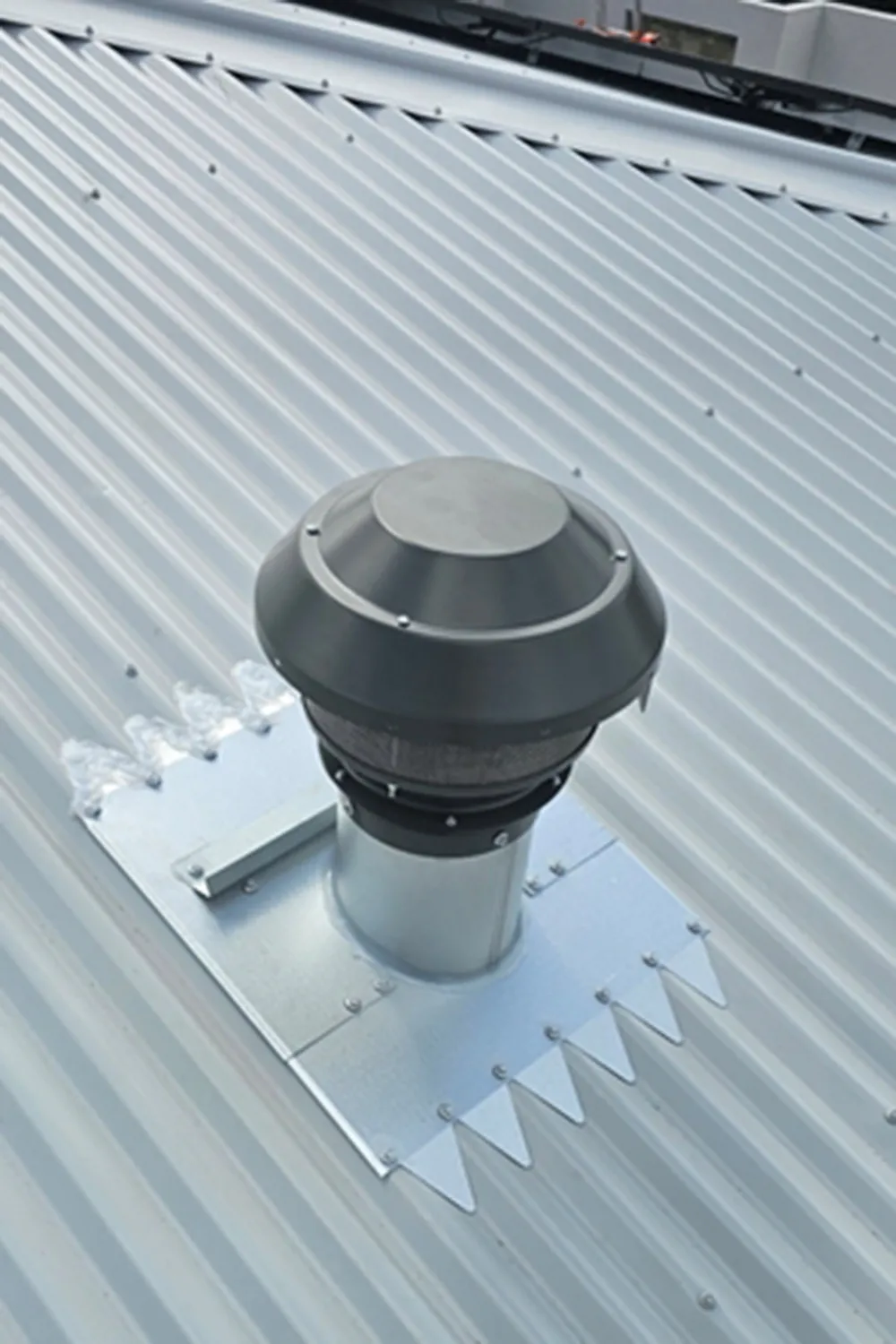

DV-ARK200 – 200 mm Adjustable Roof Flume for External Roof Motors

The DV-ARK200 is a universal 200 mm adjustable Zincalume® roof flume  engineered specifically for heavey external roof-mounted rangehood motors. Designed for maximum airflow, durability and compliance, it delivers a clean, professional finish for both kitchen and alfresco extraction systems. No need for cheap Rubber boot seals.

Compatible with all 200 mm external roof-mounted motors – including  Schweigen, Whispair & Falmec silent systems – the DV-ARK200 provides a robust, weather-tight solution for tin roofs.

Credited BAL 40 compliant when used with all Schweigen external roof-mounted motors in combination with our DV200 Stainless Steel Hi-Flow Vent.

Triple-Sealed Leak Protection

The DV-ARK200 roof flume is engineered with a premium three-stage sealing system that delivers outstanding weather protection in heavy rain and cyclone-rated environments. Each layer is designed to prevent water tracking and ensure long-term performance on all modern roof profiles.

• Fingered Top Flashing – Interlocking “fingers” contour perfectly to the roof sheet, creating a tight mechanical barrier that redirects rainwater away from the penetration point.
• Integrated Rain Diverter Guard – A built-in guard channels wind-driven rain back onto the roof surface, reducing the risk of pooling or ingress in extreme weather.
• Full Silicone-Sealed Vent Pipe – The vent pipe is completely sealed around the top and underside of the flashing, forming a continuous waterproof envelope for maximum leak protection.

This triple-seal design provides superior reliability for installers and homeowners, ensuring a secure, long-lasting and fully compliant finish on any 200 mm external motor installation.

Key Benefits

• BAL 12.5 – 40 Bushfire Certified
  Tested to AS3959 and approved up to BAL 40, providing a safe, compliant solution for homes in bushfire-prone areas.
• Hi-Flow Stainless-Steel Vent
  Optimised to minimise airflow restriction, reduce load on external motors, lower noise and improve extraction efficiency.
• Fully Adjustable Roof Flume
  Angle-adjustable Zincalume® flume to suit a wide range of roof pitches, ensuring a secure, weather-tight installation.
• Built for Harsh Australian Conditions
  Zincalume® body for corrosion resistance and a 304 stainless-steel vent for long service life in coastal, hot and high-wind environments.
• Universal 200 mm External Motor Compatibility
  Specifically designed for all brands of 200 mm external roof-mounted rangehood motors.
• Fast, Installer-Friendly Setup
  Simple on-site assembly with a quick, safe installation typically completed in under 10 minutes.

Specifications

Assembly Service

Select “Yes” for our professional assembly service and email us your roof angle. Our team will pre-configure the flume to match your roof pitch before dispatch, saving time on site and ensuring a perfect fit.

Finish

• Zincalume® Grey

Important Note

Professional installation and correct sealing are recommended to maintain bushfire compliance, weather protection and optimal performance.
