Description

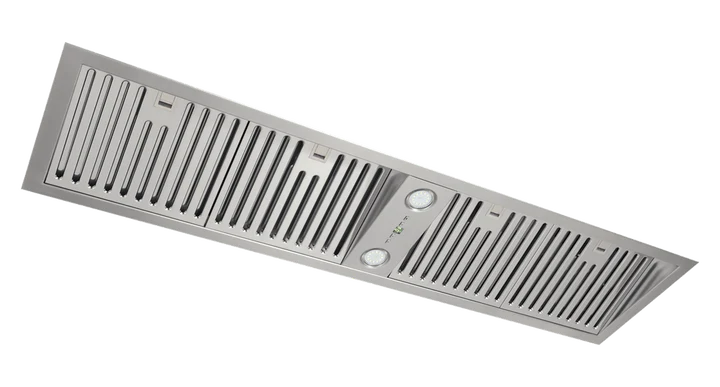

Model:UM-12UMSP

Schweigen means Silent
Schweigen is German for silent. But there’s more to it than just a name. Its high-pressure-building fan delivers the highest domestic suction and pressure available. And because it’s located outside the home (roof or side walls), it’s silent where it counts: in the kitchen! Proven sound engineering principles use ambient noise from outside to neutralise any sound from the Isodrive® motor.

The Isodrive® motor sits at the top of the system, literally, so there’s no fan next to sensitive ears in the kitchen. No motor or mountings in the rangehood means there’s much less weight in a Schweigen rangehood, so no noisy, damaging vibration – and no design or engineering compromises.

Schweigen is Efficient
Unlike other rangehoods, the Isodrive® doesn’t have to cope with doing two jobs at the same time…

• Sucking hot, soiled air from the kitchen and cooking area, then
• Pushing it uphill or around corners (or both) to the outside air…

So there’s no strain on the motor and only minimal air turbulence inside the rangehood and ventilation duct. Think of a rangehood system as an upside-down funnel. The rangehood opening is the large end at the bottom, while the outlet to the atmosphere is the narrow end at the top.

Schweigen is Clean and Safe
Turbulence causes soiled air to deposit greasy, smoky residues inside rangehoods and ducts, attracting vermin and insect pests, and creating a dangerous fire hazard – right over the cooker!

Schweigen’s Isodrive® system draws air quickly and freely to the outside with no obstructions to cause turbulence or any unhygienic, high-risk build-ups of grease and grime.

Schweigen’s exclusive Isodrive® is uniquely silent, efficient, clean and safe. No problems.

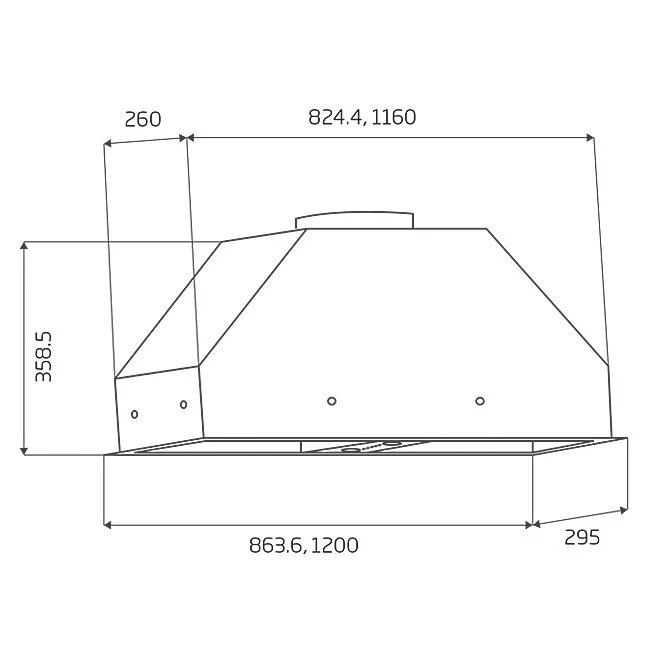

Specifications

• Height (mm)
  358 mm
• Width (mm)
  1200 mm
• Depth (mm)
  295 mm
• Model
  UM-12UMSP
• Model number
  UM-12UMSP
• Colour
  Stainless Steel
• Filter
  Dishwasher Safe Baffle Filters
• Lights
  2 x LED
• Flue size
  200mm
• Noise rating
  N/A
• Extraction fan
  1600m3/h
• Lighting
  LED
• Controls
  Digital Controls
• Size range
  120cm
• Features

  ✓ 5 speed digital button controls
  ✓ Twin LED lights
  ✓ Delay timer with auto shut-off
  ✓ Easy to clean, dishwasher safe baffle filters

• Manufacturer warranty
  10 Years Motor. 5 Years Canopy. Lifetime Filters.
• Installation
  Top Ducting

Downloads

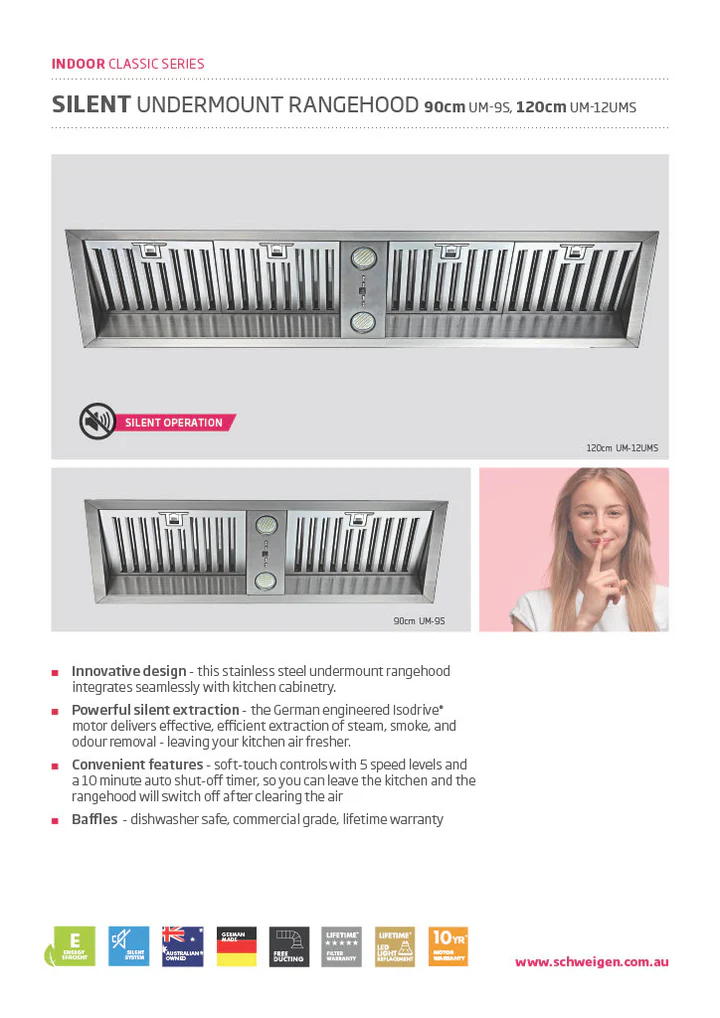

Specification Sheet

User Manual

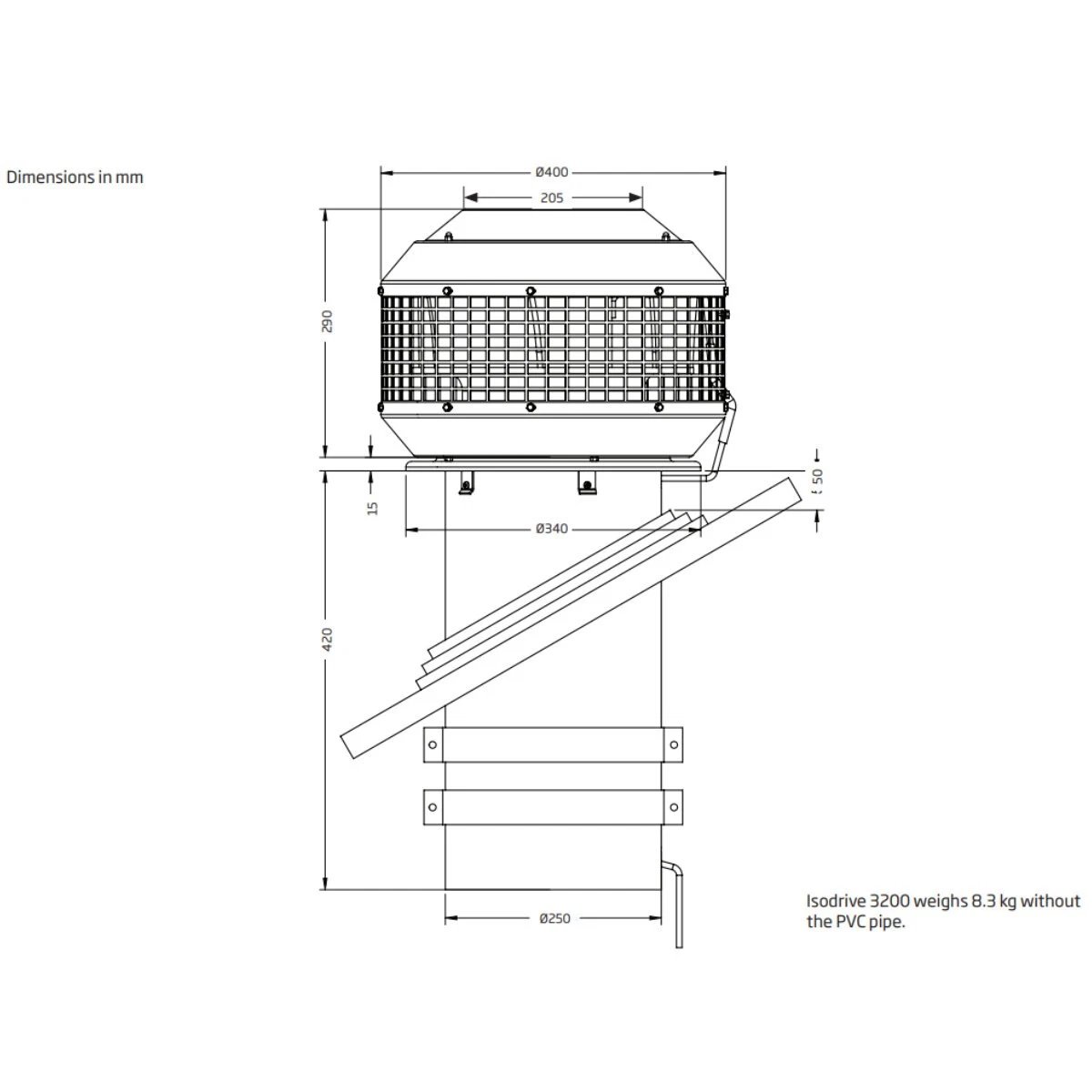

Isodrive SP Motor Specification

Isodrive SP Motor User Manual Sheet
